Enfield 8" hubs replica page last update: 7/2005

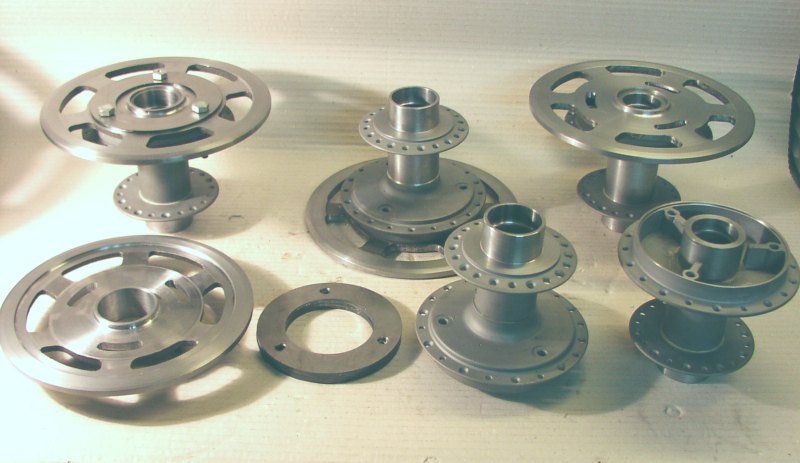

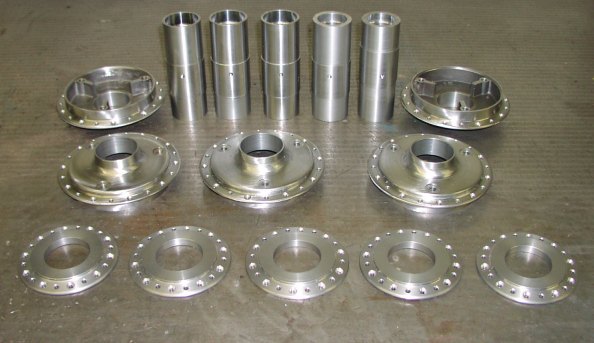

| As described on my respective pages I have set out in 2001 to produce a small batch (2 off, really) of Re-manufactured Enfield Cush Drive rear hubs. Now I have made another five. The hub parts before silver soldering can be seen to the right. |
|
| These are the hubs after soldering and sand blasting. The sprockets still want cutting the teeth, of course! |
|

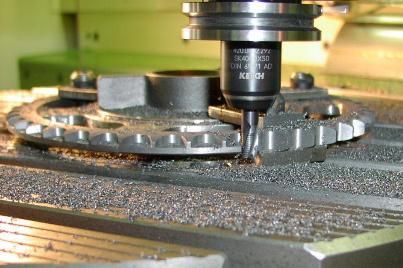

| This we do on a CNC mill. Not quite the usual way, but far more accurate! |
|

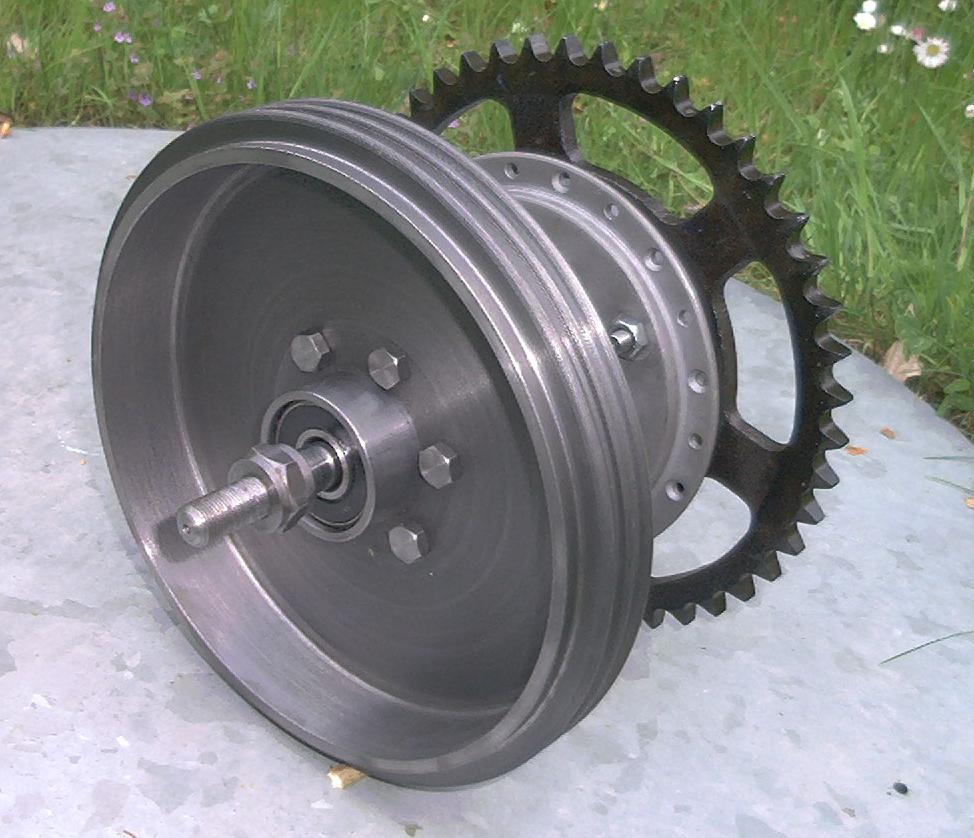

| This is a finished hub with sprocket and brake drum. The brake drum in this case is of the 3-ribbed Norton style. I understand this style was never used on Broughs, but dare I say it is technically much better than the plain drum...? Of course I can also produce the plain drums. In fact, this is much easier than cutting the fins! |
|

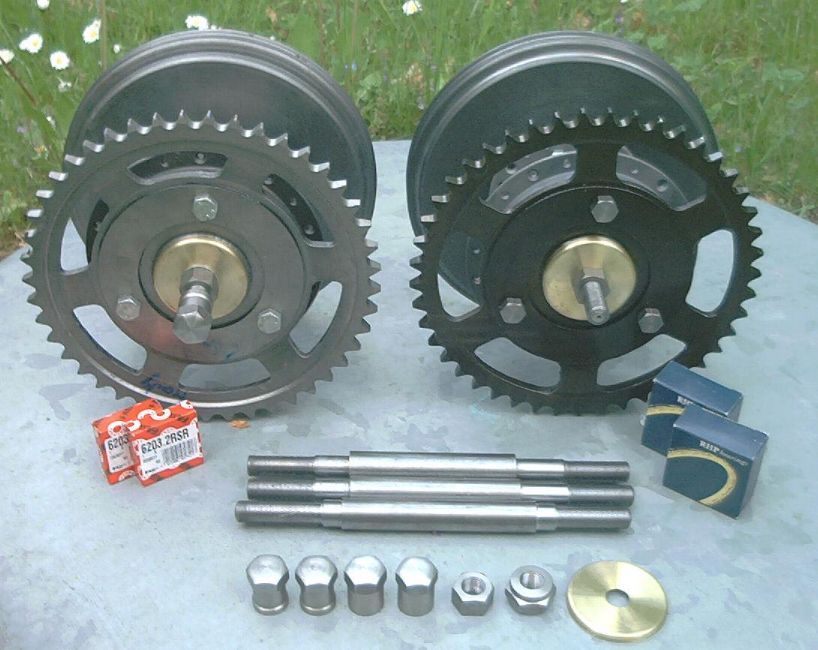

| I have now made almost every bit for the rear hub except the brake
plate. ...well I do buy the bearings...:-) |
|
| 3/2004: I have now almost finished the rear hub for the SS100. Turning the aluminium cooler ring from a slab of aluminium would not have been so bad if I had not insisted on a corrosion-resistant alloy. Unfortunately the slab of AlMgSi1 I obtained was very soft, and causes no end of trouble with build-up on the cutting tools. But here we are. |
|

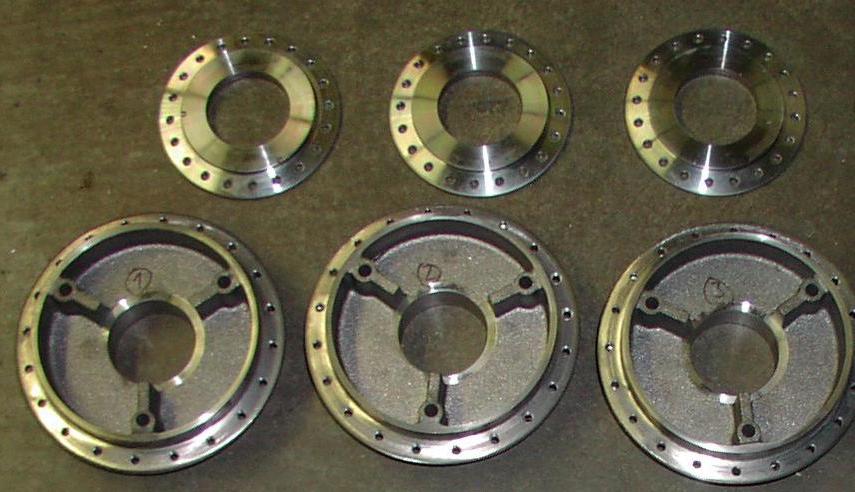

| 1/2005: In my various projects, I need a few more hubs, so I have started another batch. These are the drive and brake side spoke flanges. |
 |
| I have also made a number of brake drums. Plain and finned ones. |
 |
| I have also built a pattern for the brake shoes and have had a number of
these cast. Altogether I have now far too many unmachined castings of all
sorts and too little time to do the machining....
|
 (click on pics to enlarge) |

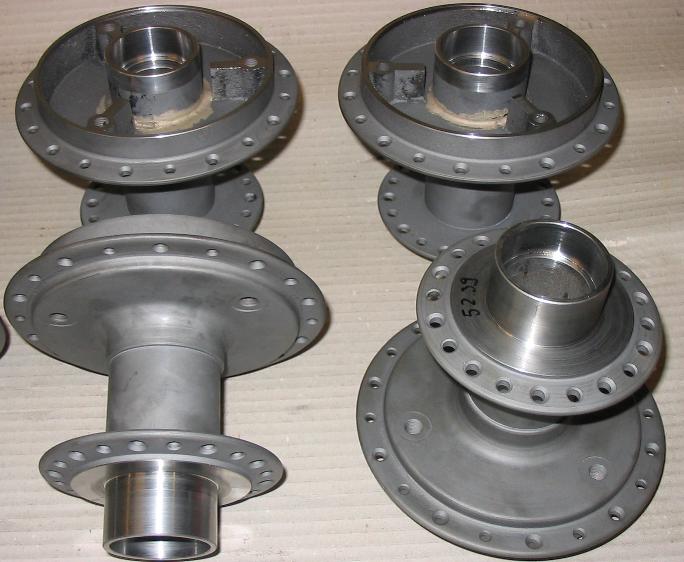

| 12/2005:Time is the problem, but now I have at least managed to finish a few hub centres! |
 |

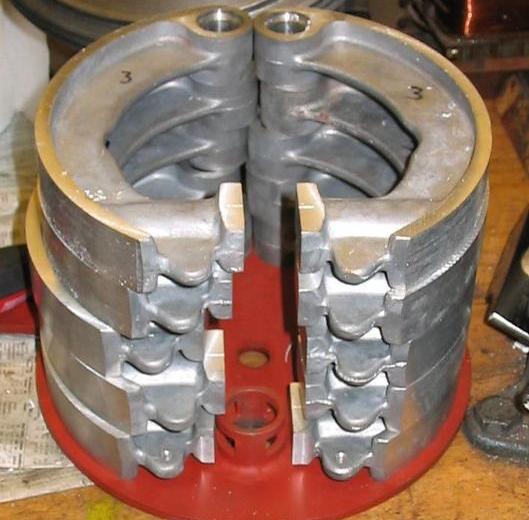

| 1/2006: I have now finally found some time
to machine a few brake shoes. Of course I found, once again, that it takes a lot of time to do it nicely, but that is why I am in it. My purpose is not making bits that "will do", I am taking my pride and satisfaction from striving for perfection..... |
 |
| 1/2006: I have also had a number of laser cuttings made for the brake plates and levers etc. |
 |

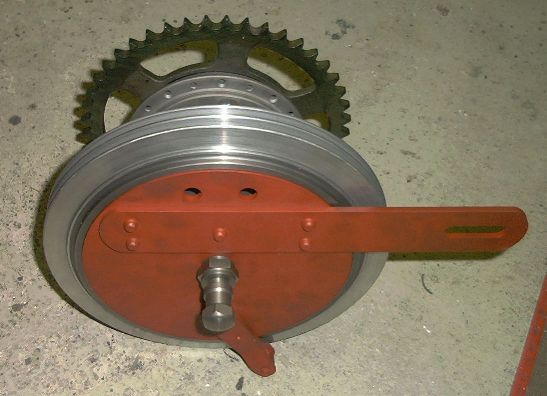

| 7/2006: This is how a complete hub looks like.. |
 |
