Castle forks front leg bottom ends last update: 12/2003

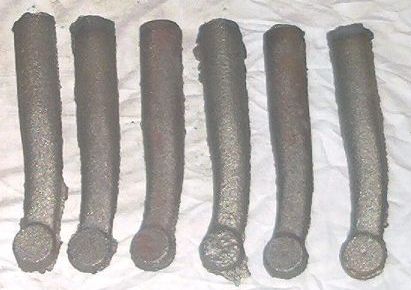

| The castings came a bit rough, but still better than with the important
bits ground off... The good news is that this is cast steel. Strong and ductile. |
|

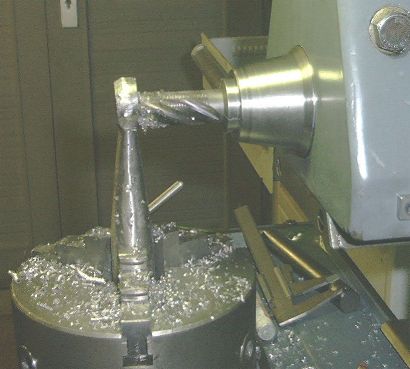

| After cleaning the castings up, I started by milling the sides of the bottom ends ... |
|

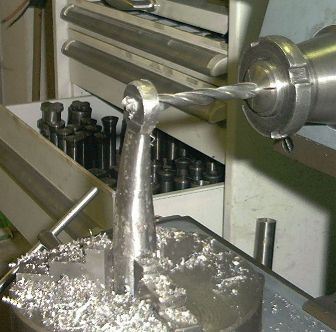

| ... and drilling the holes for the link pins. |
|
| Now, it became apparent that I would need a jig for turning the stems. |
|

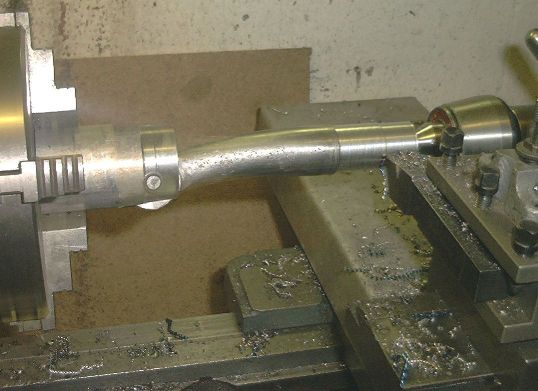

| Which you can see in operation here. It holds the bottom end of the lug
with the correct offset to the centre line of the tube end.

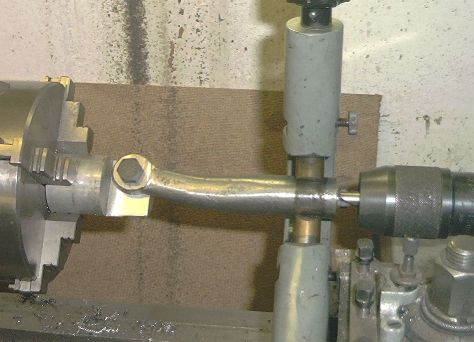

Now I was able to face the top end and centre drill it while supporting it in steadies. |
|
| Turning the step to go into the tube was a simple task then. |
|

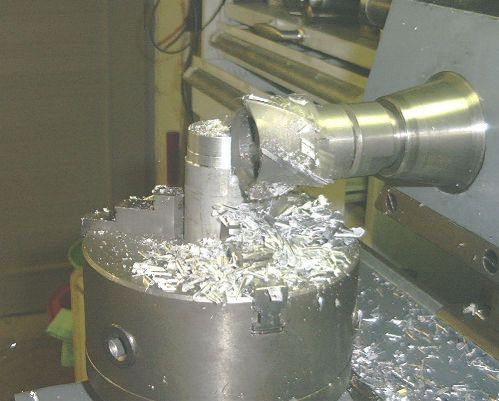

| I took them all onto the mill again then to finish the bottom end, as I
wanted to make quite sure the faces are parallel to the tube end.
I have seen enough Castle forks binding badly, which is usually due to all the bits not being well enough aligned. So better start with proper right angles... |
|
